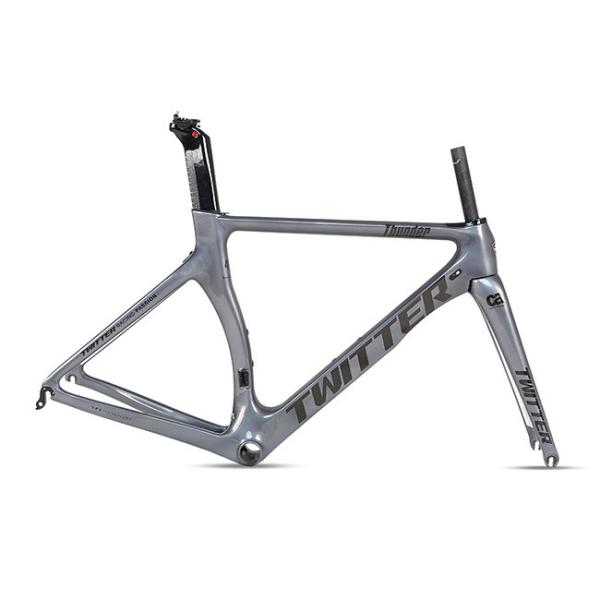

Carbon Road Bike Frame Bicycle Frameset Rim Brake Wheel Size 700*25C
TWITTER THUNDER C brake CARBON ROAD BIKE FRAME SPECIFICATION:
| Model/Name | Thunder-C carbon road Frame + Fork + Seat post + Headsets |
| Size(Height) | 46cm / 48cm / 50cm / 52cm / 54cm |
| Material | High modulus Carbon fiber (T800) |
| Aplicated wheel size | 700*25C |
| BB | BB86*46 Pressed |
| Head tube | 52*52&Cover |
| Quick Release | F100*R130mm |
| Decals | UV laser colorful decals |
| Process | Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals |
| Weight | Frame 1.13KG, Fork 0.37KG, Seat post 0.25KG |
| Color | Red /BlackSilver/ Blue/ Orange /CementGray /Silver/ Black /BlackRed /WhiteRed |
Carbon Fiber Road Bike Frame Features
1. Hidden cable design, more attractive.
2. Tapered head tube design, together with the tapered and straight fork design, which offers a better stiffness for steering and acceleration.
3. Strong chain stay and seat stay design, which offers super stiffness and strength for racing
4. DI2 system available too
5. Maximized stiffness-to-weight ratio design, have a excellent balance for weight-stiffness-strength.
Adantages of Carbon Fiber Road Bike
1. Strong carbon fiber shell durable frame, strong and light weight.
2. the finished frame has better hardness, toughness, strength to weight ratio tightness and other qualities.
3. Significantly improve the stability and smoothness of the lamination and joint between the inner cavity of the frame.
4. Greatly reduce the excessive concentration of internal stress of the frame, the length of the finished frame life, stable quality
5. The finished frame has a smooth appearance.

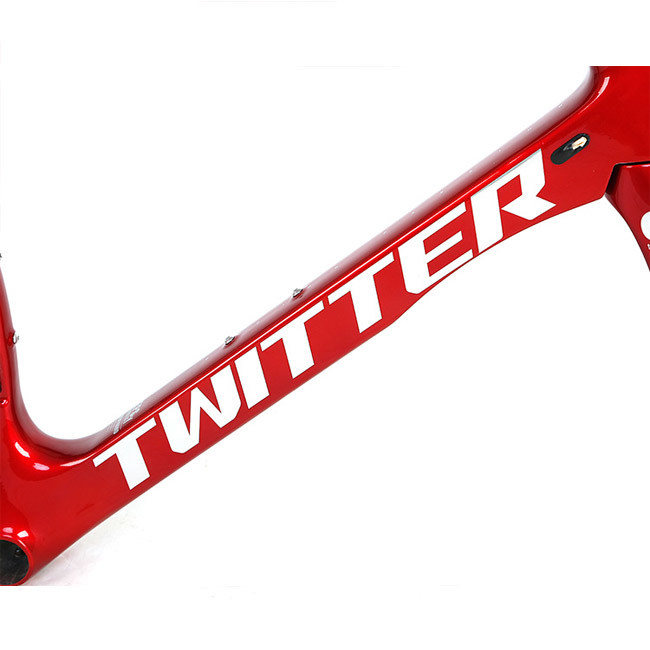

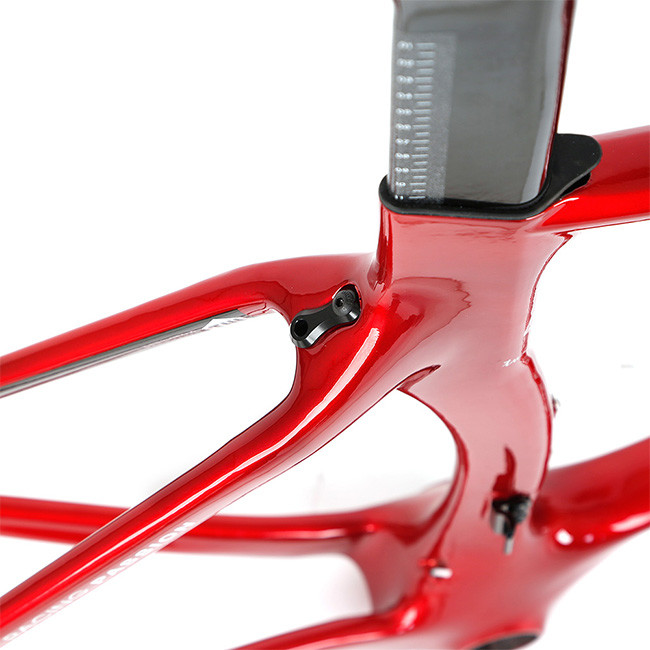

TWITTER Thuner Carbon road bike frame, shows on detail

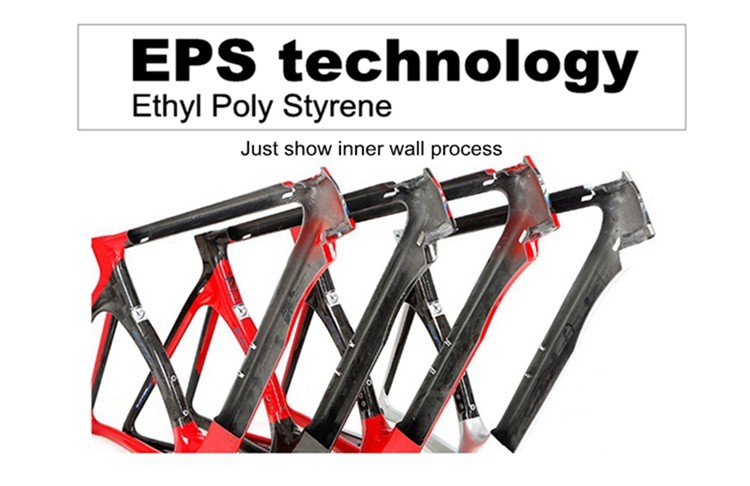

Road bike frame with EPS Technology
Size of the Frame
| SNIPER 2.0 |
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | mm | mm |
| XS | 460 | 525 | 370 | 405 | 75.5 | 71 | 72 | 95 | 45 | 141 | 568 | 962 | 270 |
| S | 480 | 535 | 374 | 405 | 74.5 | 71.5 | 72 | 110 | 45 | 149 | 569 | 963 | 270 |
| M | 500 | 545 | 379 | 405 | 74.5 | 72 | 72 | 115 | 45 | 154 | 575 | 970 | 270 |
| L | 520 | 555 | 383 | 405 | 74 | 72.5 | 72 | 130 | 45 | 161 | 580 | 974 | 270 |
| XL | 540 | 565 | 389 | 405 | 74 | 73 | 72 | 145 | 45 | 167 | 587 | 985 | 270 |
Carbon road bike frame with UV laser colorful decals

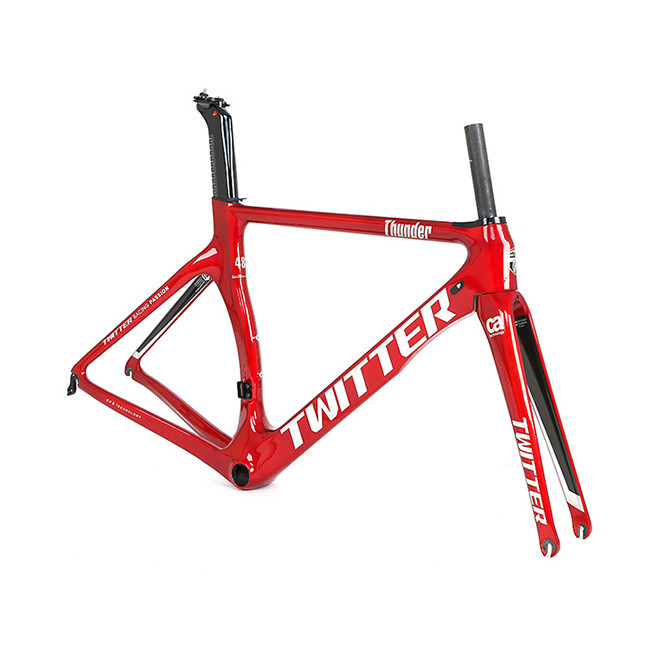

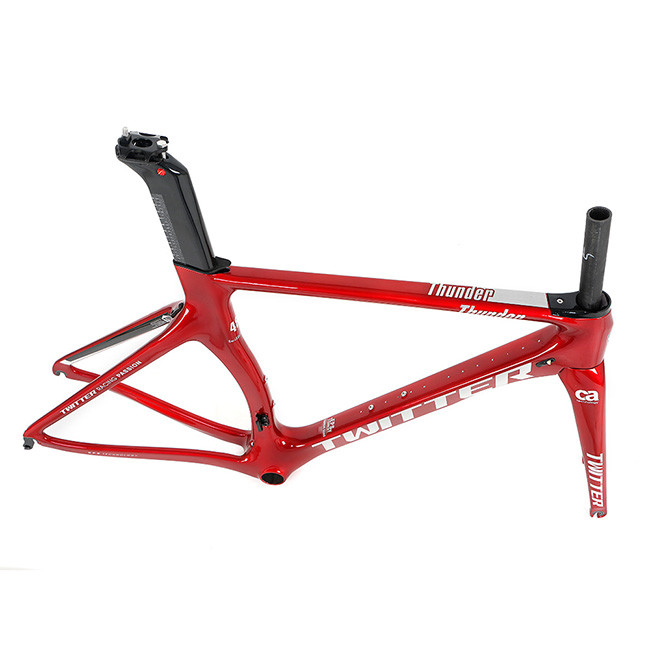

Different Viewing Angel for the Carbon Road bike frame.

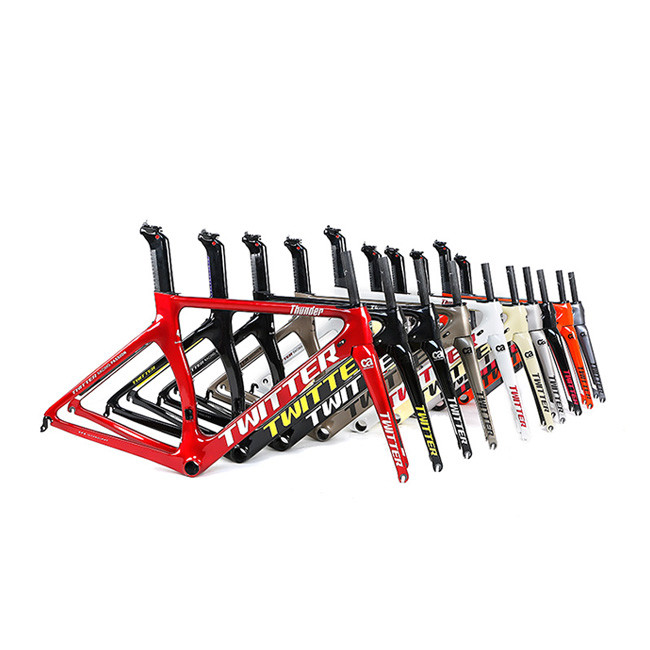

Color of TWITTER Road Bike Frame THUNDER-C
Multi-color optional, you can find the one you like.
Why choose us?
1) Competitive Factory Price ! No Agency Fees !
2) Strict quality assurance ! Perfect paint job.
3) Fast Delivery.
4) Experienced after-sales service.
Feed Back
Your feedback is extremely important to us! Every carbon product has 2 years warranty! if your product has any problem, please contact us first! Please trust us will solve all problem!
