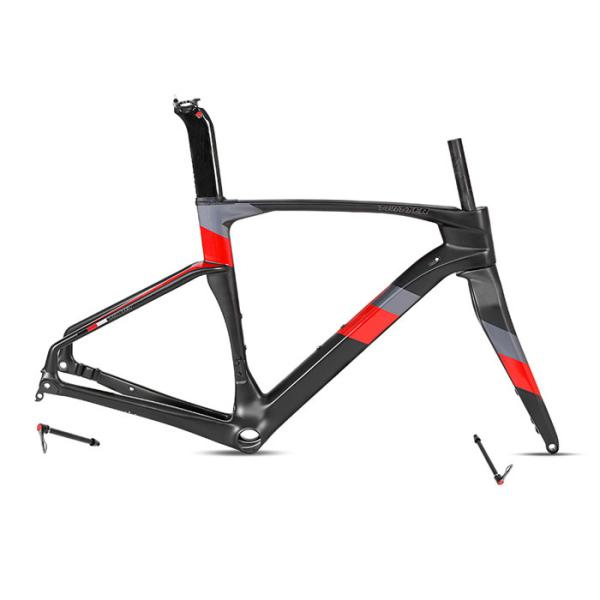

XC Level Carbon Road Bike Frame

Name: XC Level Carbon Road Bike Frame
Brand: TWITTER
Price: 1 USD

China XC Level Carbon Road Bike Frame wholesale

Brand Name : TWITTER

Model Number : CYCLONEpro-Disc frame

Certification : CE RoHS REACH ISO9001

Place of Origin : CHINA

MOQ : 10PC

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, alipay

Supply Ability : 30000pc per month

Delivery Time : 7-15 working days

Packaging Details : 1.Foam plastic packaging,carton packaging outside.2.Size: 140cm*75cm*20cm.One bike into per carton.3.Container size:290-296pcs into a 40HQ container.120-125pcs into a 20GP container.

Price : Negotiable

Frame : All cables inner Routing Disc Brake Frame

Size : 45cm / 48cm / 51cm / 54cm

Color : BlackRed Red WhiteRed Black TiGray CementGray Blue Yellow Orange

For BB : BB86*46 Pressed

Head tube : 52*52&Cover,

Process : XC-Racing, EPS, Inner-Cables, Matte or Gloss or Holographic color paint, UV laser colorful decals

Weight : Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG, Handlebar set 0.19KG

Material : High modulus Carbon fiber(T900 mix)

Item : carbon road Frame+Fork+Seat post+ Headsets+Cover&Washer +Lever+Handlebar set

Contact Now

700C Carbon Fiber Road Bike Frame Racing Bicycle Disc Brake XC Level

Frame specification:

Brand:TWITTER
Model/Name:CYCLONEpro-Disc carbon road Frame+Fork+Seat post+
Headsets+Cover&Washer +Lever+Handlebar set
Feature:All cables inner Routing
Frame Size(Height):45cm / 48cm / 51cm / 54cm
Material:High modulus Carbon fiber(T900 mix)
ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
Process:XC-Racing, EPS, Inner-Cables, Matte or Gloss or Holographic color paint, UV laser colorful decals
Weight:Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG, Handlebar set 0.19KG

size	A	B	C	D	E	F	G	H	I	J	K
	BB Center to Top of Seat Tube	Effective Top Tube Horizontal	BB offset	Chainstay Length	Seat angle	Head Angle	Front Center	Head Tube Length	Fork Offset	Reach	Stack
	mm	mm	mm	mm	°	°	mm	mm	mm	mm	mm
XS - 45cm	450	505	-74	408	74.3	71.2	570	100	55	363	506
S - 48cm	480	520	-74	408	74.3	71.2	588	114	55	374	518
M - 51cm	510	538	-74	408	74.3	71.2	607	130	55	388	534
L - 54cm	540	550	-74	408	74.3	71.2	620	150	55	394	553

XC Level Carbon Road Bike Frame

Carbon Fiber Road Bike Frame Features

1. Internal cable routing system, easy for cables slip through,

2. Most groupset SHIMANO , Sram, Sensah ,Lwtoo ,available too

3. Hidden cable and Innder lock design, which offers super stiffness and strength for racing

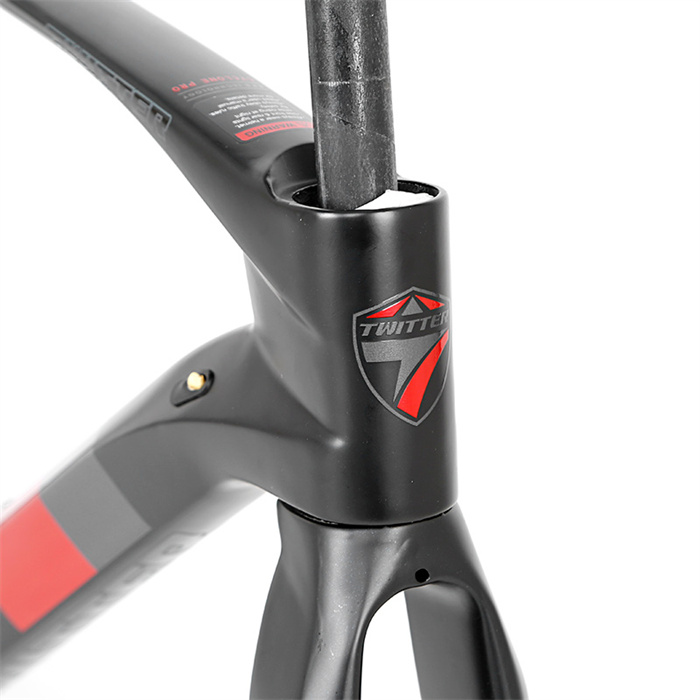

4. Tapered head tube design, together with the tapered and straight fork design

5. Maximized stiffness-to-weight ratio design, have a excellent balance for weight-stiffness-strength.

Carbon fork

XC Level Carbon Road Bike Frame

Please Read- 100% Satisfaction Guarantee

If you have any problem. Please contact us through Message or or email, we will gladly assist you.
6 months warranty: Please contact us when you met a problem(except human destruction)during usage Try our best to resolve the problem and repairing or replacing a new one let you satisfied .

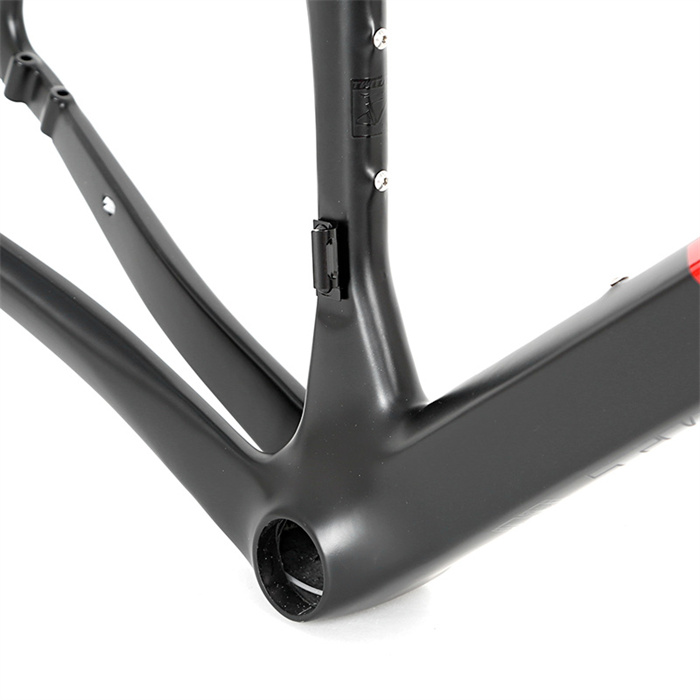

For BB86*46 Pressed

XC Level Carbon Road Bike Frame

Long business relationship searched

We also offer customer painting and build complete bikes by customer request, Any needed,please contact us.

Shipping & Handling

Our products are sent to any country. If you can't select idead ship method in the order,please kind to contact us.We usually use express,5-15 days arrival.We offer combined shipping discount for multiple item purchases,We will adjusted total price after your order.Tracking number will be emailed to the buyer or be put under order.
