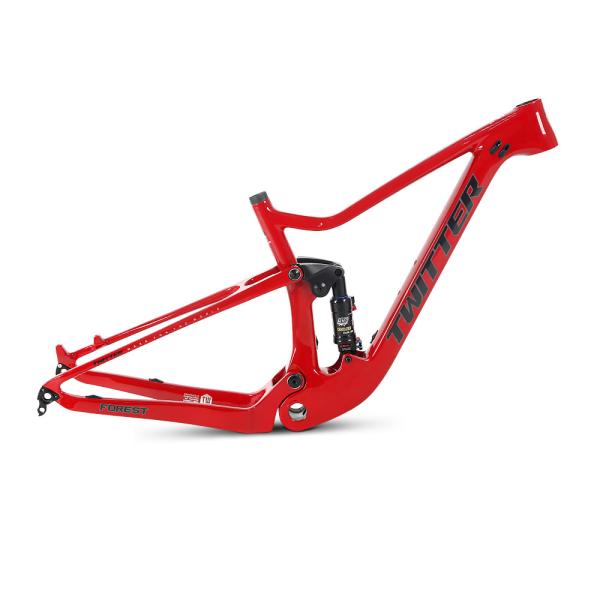

15"17" 19" Carbon Fiber Full Suspension MTB Frame With DNM Rear Shox
Carbon Fiber Full Suspension MTB Frame Mountain Bike Frame With DNM Rear Shox
| Brand | TWITTER / OEM |
| Model | FOREST full suspension carbon MTB frame |
| Name | Carbon mtb Frame |
| Wheel Size | 29"/27.5" |
| Frame size | 15"/17"/ 19" |
| Material | Carbon T900 |
| Seat post size | 31.6mm |
| Clamp size | 34.9mm |
| Head tube size | 42*52mm Tapered |
| BB width | BSA73 threaded |
| O.L.D | 120mm |
| Apply to tyre max | 27.5*3.0&29*2.35 tyre |
| Brake | Disc Brake |
| Cable Routing | Internal |
| Compatible with Fork | Tapered |
| Level | XC, AM |
| Weight | about 2.19KG(17", excluding Rear shox) |
| OEM | Available |
FOREST full suspension carbon MTB frame angles:
| Frame size with Rider Height |
| Frame size | 27.5"*15" | 27.5"*17" | 27.5"*19" | 29"*15" | 29"*17" | 29"*19" |
| Rider Height | 155-170cm | 165-180cm | 175-190cm | 165-180cm | 175-190cm | 185-205cm |
| FRAME GEOMETRY(FOREST) |
| 29ER(27.5+) |
| SIZE | O | H | E | F | D | C | A | B | K | G | L | R | S |
| S | 410 | 570 | 663.5 | 450 | 42 | 46 | 73.8° | 68.5° | 1110.2 | 90 | 500 | 403.3 | 573.7 |
| M | 440 | 600 | 694 | 450 | 42 | 46 | 73.8° | 68.5° | 1140.7 | 95 | 500 | 432 | 578.4 |
| L | 490 | 630 | 724.9 | 450 | 42 | 46 | 73.8° | 68.5° | 1171.7 | 105 | 500 | 459.3 | 587.7 |
| XL | 540 | 650 | 745.8 | 450 | 42 | 46 | 73.8° | 68.5° | 1192.7 | 115 | 500 | 476.6 | 597 |

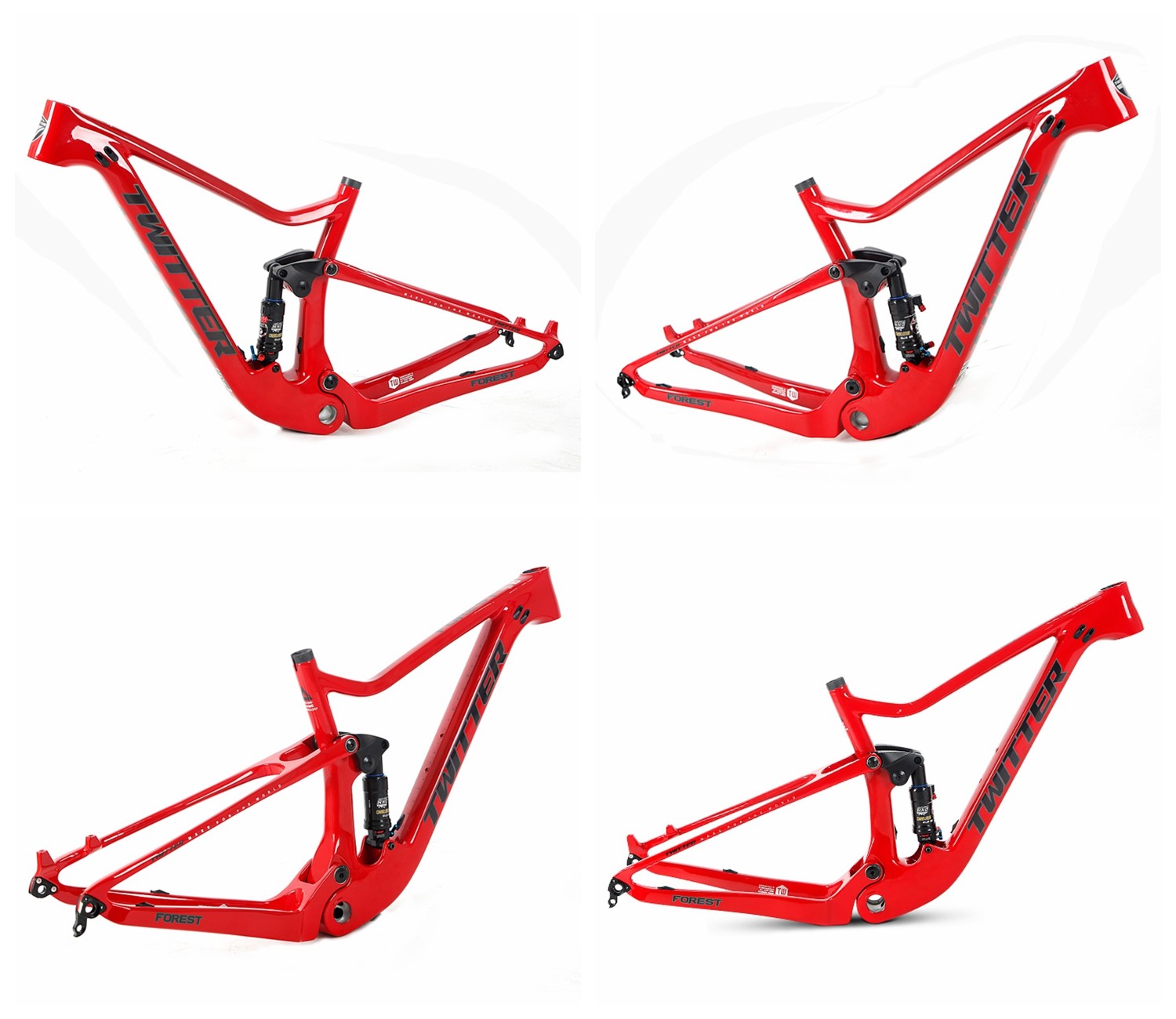

FOREST full suspension carbon MTB frame colors:

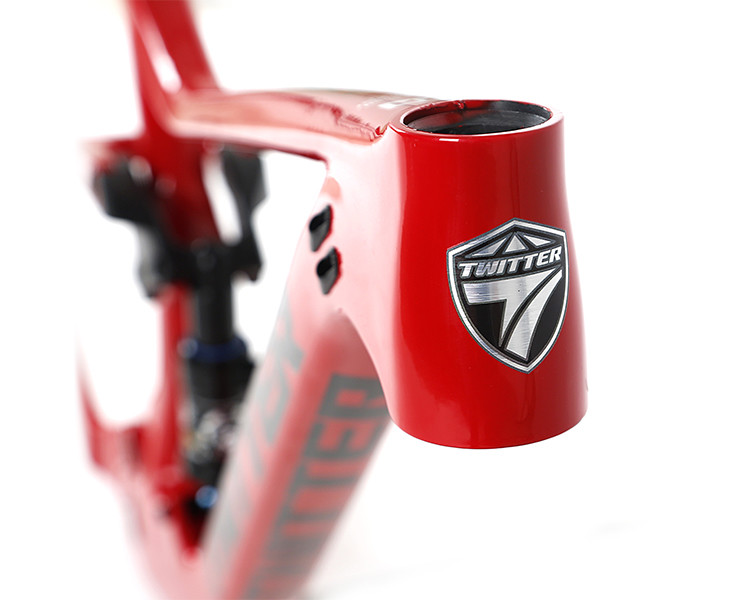

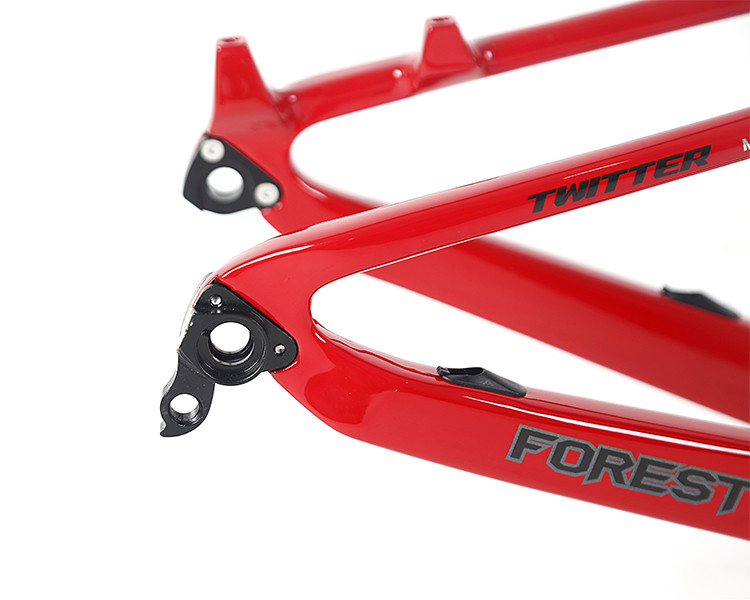

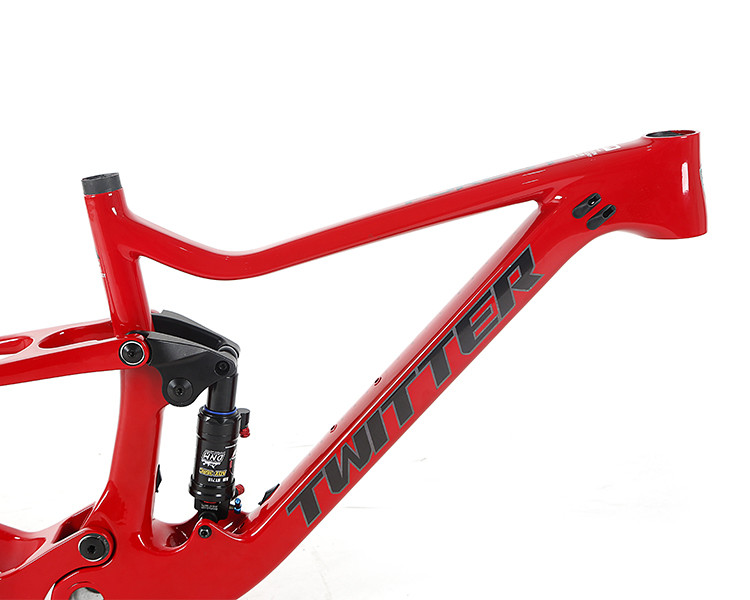

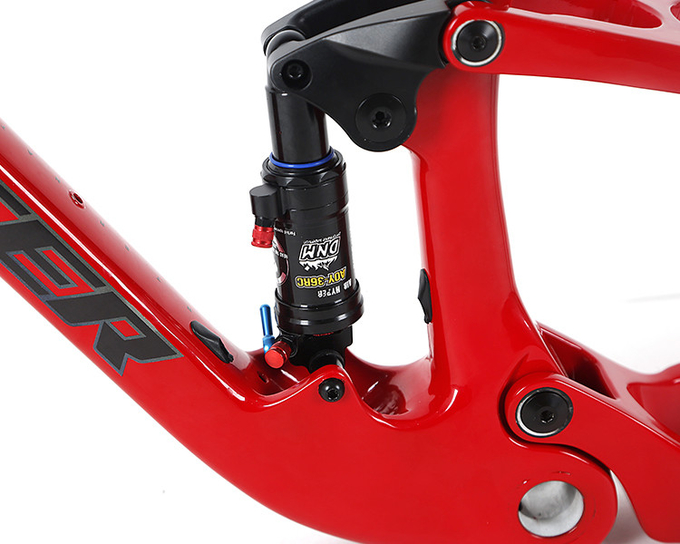

FOREST full suspension carbon MTB frame details:
Our Advantages
1. Competitive Factory Price !
2. Strict quality assurance !
3. Timely & Professional after-sales service !
Company Introduction
>1. Twitter Bicycle factory is located in Longhua Shenzhen and it is an enterprise focusing on the design and development,production and sales for middle-to-high range bicycles, which has more than 100 employees and over 5000 square meters of factory.
>2. The company adheres to excellent design, High-quality products, perfect service, pragmatic prices to meet customer needs and continue tracking of domestic and foreign advanced technology, and strengthen the development of new products.
>3. We main lining bikes(Road bike,mountain bike,folding bike,e bike,children bike and etc) and accessories(bike frame,fork,wheels and etc).Exported products to over the world.
>4. There are 40% in the Southest of Asia markets;10% in the America markets;10% in the Europe markets;10% in the the Middle East and etc.
FAQ
1. Q: Can I get sample and how long will it take?
A: Yes. We can supply sample. And you need to pay for the sample and courier. About 10days after receiving the payment, we will send it out.
2. Q: What's the MOQ?
A: Our MOQ is 50 pcs.
3. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. We are very welcome.
4. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
5. Q: What's the delivery time?
A: It will take about 25-35 days to finish an order. But the exact time is according to actual situation.
