Full Inner Cable Bike Carbon Fiber Road Bike 22 Speed Carbon Wheelsets
T10pro Lightweight Carbon Road Bike
- High Modulus Carbon T800 Carbon Fiber Frame, Fork and Seat post - It’s a lightweight and stiff carbon road bike at 8.5kgs.
- Newest SRAM RIVAL2*12 Speed with Shifter lever, Front derailleur, Rear derailleur.
- Full Internal cable routing ensures clean airflow over the entire bike.
- TW comfortable and lightweight Saddle, TW Alu alloy in Carbon,4-sealed Bearings and Continental Ultra Sport II Wire 700x25C Tire. Free Pedals Included.
Components:
| Frame | T10pro, high modulus Carbon T800,EPS,Aero-Racing,Inner-Cable,Gloss&Cut,UV laser colorful decals |

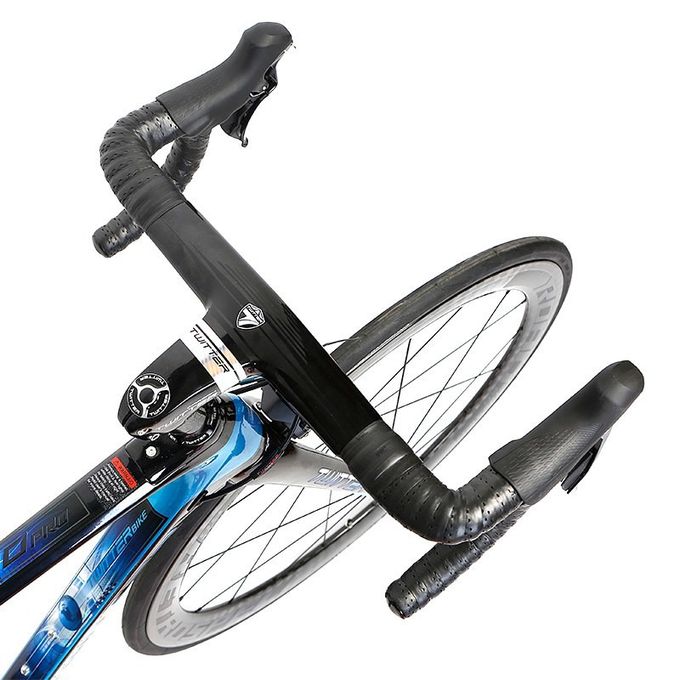

| Handelbar Sets | Carbon,integrated Hb&St(420*90mm),Hidden-Cables |
| Seat Post | High modulus Carbon,Aero-Racing, water decals |
| Clamps | Hidden Screw Fit to Frame |

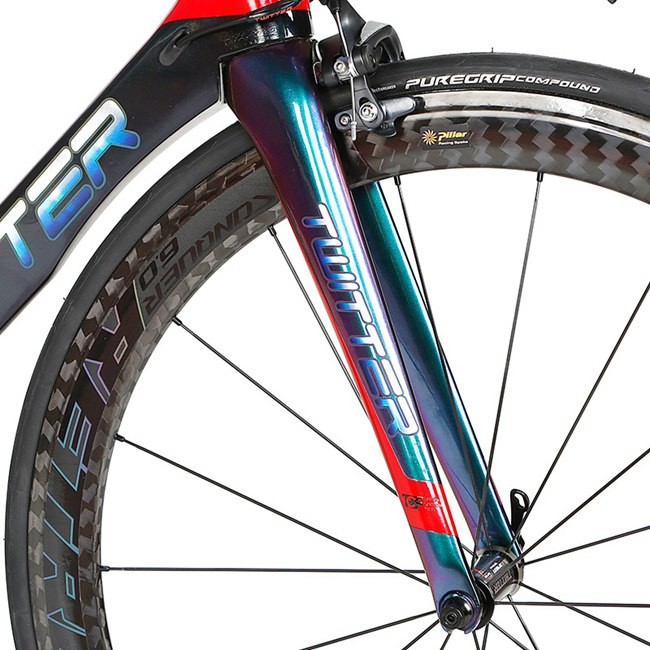

| Fork | T10pro, high modulus Carbon, 700C, UV laser colorful decals |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 42*52mm |
| Washer | Carbon 3K, 3×28.6×10mm |
| Derailleur Handle | SRAM RIVAL-22S |
| Front Derailleur | SRAM RIVAL |
| Rear Derailleur | SRAM RIVAL |
| Cranksets | SRAM RIVAL, Hollow,34-50T |
| Cassettes | SUGEK-11S, 11-28T |
| Chain | YBN-11S |
| BB | BB86×46×24mm, pressed, alloy CNC&Hollow |
| Brake | TEKTRO, Alu alloy C-clamper |
| Hubs | TW Alu alloy in Carbon,4-sealed Bearings,Slotted |
| Rim | RS, carbon 12K twill,Clincher,W23×H50mm×700C |
| Spoke | Pillar, Stainless Pro,Flat 14G,Straight |
| Tire | Continental, UltraSportII, 700*25C |
Details:RIVAL-22S-B, carbon wheel
Size:700C*46cm / 48cm / 50cm / 52cm / 54cm
| |
| The Geometry of T10pro |
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | ° | mm | mm | mm | mm | mm | mm |
| XS - 45cm | 460 | 525 | 370 | 405 | 75.5 | 71 | 72 | 95 | 45 | 141 | 568 | 962 | 270 |
| S - 48cm | 480 | 535 | 374 | 405 | 74.5 | 71.5 | 72 | 100 | 45 | 149 | 569 | 963 | 270 |
| M - 51cm | 500 | 545 | 379 | 405 | 74.5 | 72 | 72 | 115 | 45 | 154 | 575 | 970 | 270 |
| L-52 | 520 | 555 | 383 | 405 | 74 | 72.5 | 72 | 130 | 45 | 161 | 580 | 974 | 270 |
| X L - 54cm | 540 | 565 | 389 | 405 | 74 | 72 | 72 | 145 | 45 | 167 | 587 | 985 | 270 |
| FRAME SIZE WITH RIDER HEIGHT |
| Frame size | XS - 46cm | S - 48cm | M - 50cm | L-52cm | L-54CM | |
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195cm | 195-205CM | |

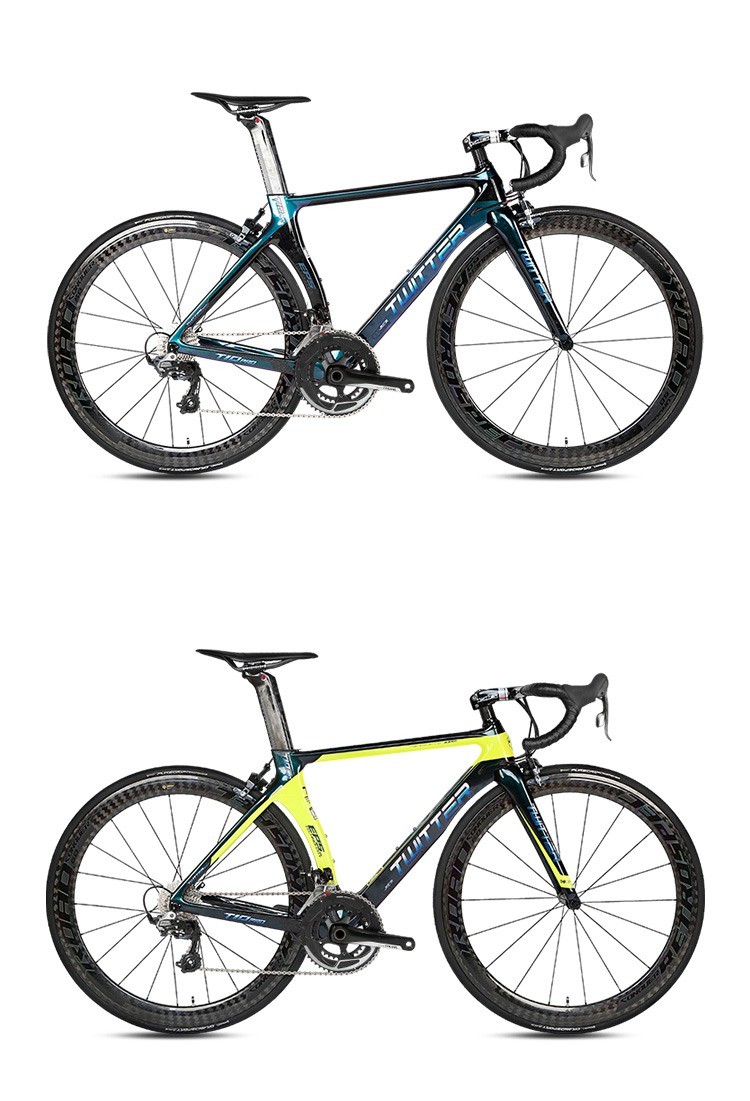

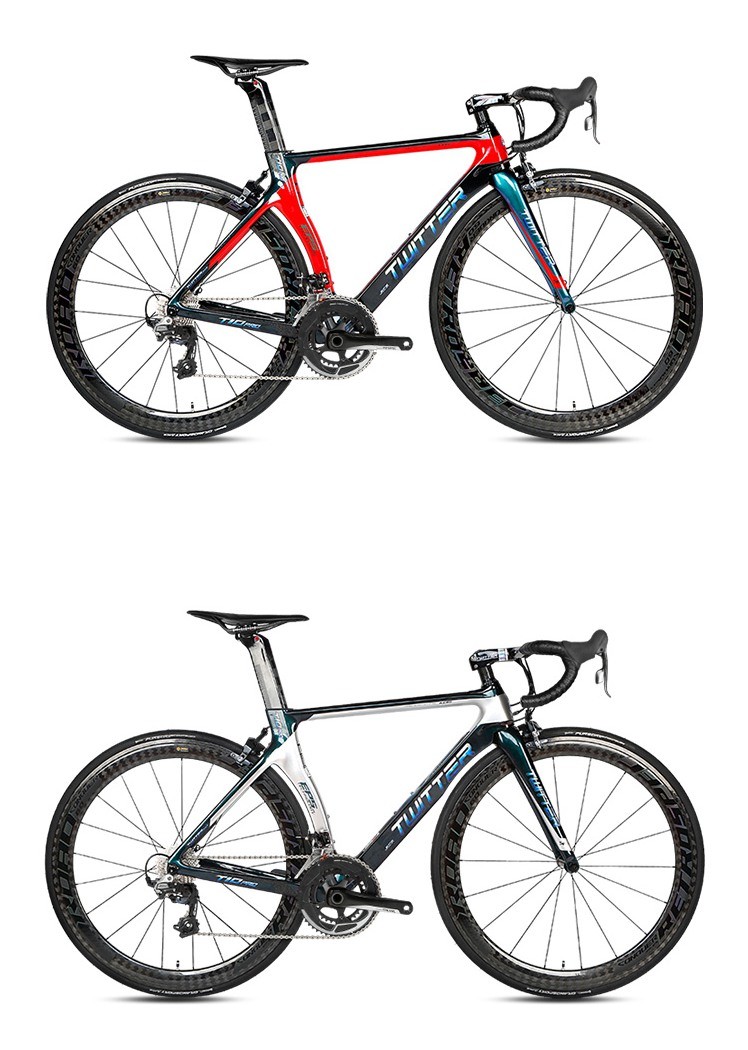

Colors:Holographic color(Red / Black / Ti / Yellow)
Everyday Care
Simple steps can ensure that your carbon bicycle becomes an heirloom.
One of the easiest is parking it safely. Never lean it in such a way that it can roll and fall on its side or slam into anything.
For example, don't rest the seat or frame against a pole and think it's safe (no matter how gently you placed it there), because the bike might move letting the frame crash against the pole, which could easily damage it. Or, the handlebars might swing around all the way and smack into the top tube.
To prevent these risks lay the bike down in a safe place when you park it or at least ensure that it's resting on a level surface and leaning against a wall.
Also, some companies recommend avoiding exposing your bicycle and components to high temperatures such as leaving them inside a parked car in the sun or storing them next to heat sources or radiators. Similarly,
if you live by an ocean where there's lots of salt in the air, or if you're a person who sweats excessively, you should take extra care to clean and rinse the salt off your bicycle and components to protect them from any possible corrosion of the metal parts.
|
|
