Disc Brake Road Bike Frame T900 Light Weight Carbon Fiber Frame 700C
CARBON ROAD BIKE FRAME SPECIFICATION:
| Model/Name | STEALTHpro-D carbon road Frame + Fork + Seat post + Headsets + Lever |
| Size(Height) | 45cm / 48cm / 51cm / 54cm |
| Material | High modulus Carbon fiber(T800) |
| Aplicated wheel size | 700*25C |
| BB | BB86*46 Pressed |
| Head tube | 52*52&Cover |
| Thru axle | F12*100_R12*142mm, Flat-mount post, |
| Decals | UV laser colorful decals |
| Process | Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals |
| Weight | Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG,Handle bar set 0.19kg |
| Color | Red Black /DarkGray /CementGray / Orange/ Blue/ BlackRed /SilverRed |
Adantages of Carbon Fiber Road Bike
1. Strong carbon fiber shell durable frame, strong and light weight.
2. the finished frame has better hardness, toughness, strength to weight ratio tightness and other qualities.
3. Significantly improve the stability and smoothness of the lamination and joint between the inner cavity of the frame.
4. Greatly reduce the excessive concentration of internal stress of the frame, the length of the finished frame life, stable quality
5. The finished frame has a smooth appearance.
Why Chose Us
- Factory price
- Logo customized
- Customized packages
- A lots of color for your choice
- OEM manufactured and popular design
- CE, SGS, and other certificates
- Lifelong aftersales tracking
- Stable supply and fast delivery

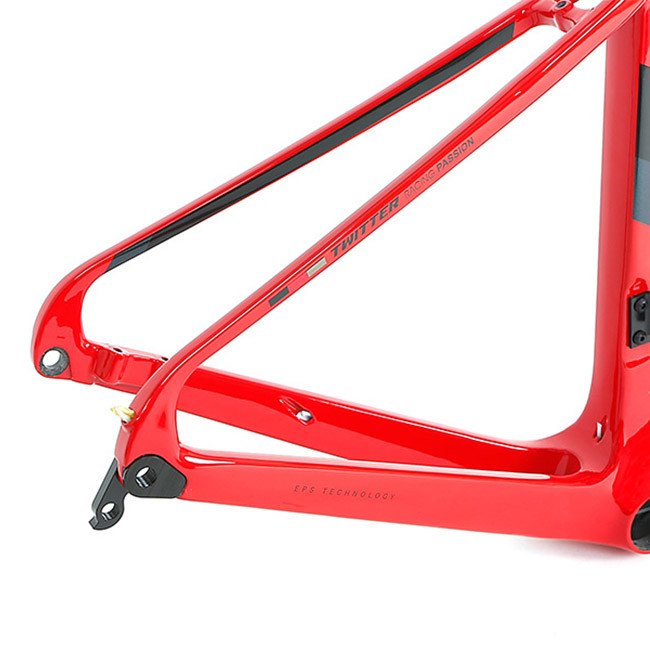

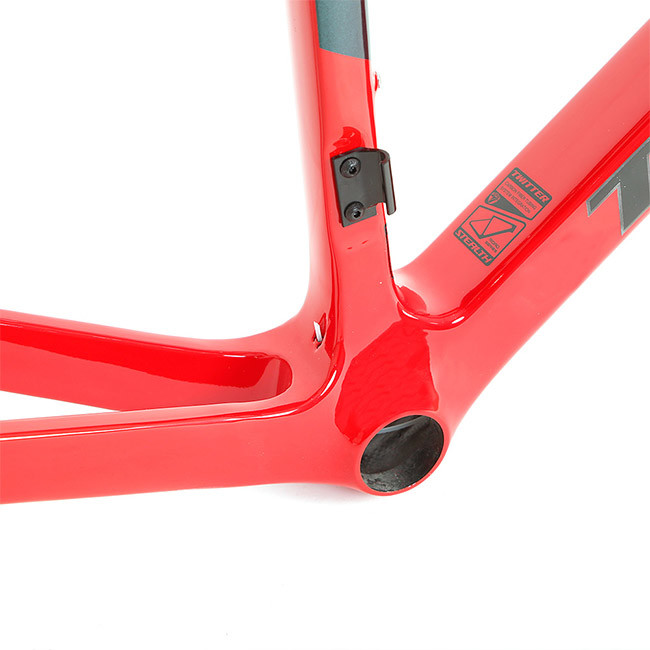

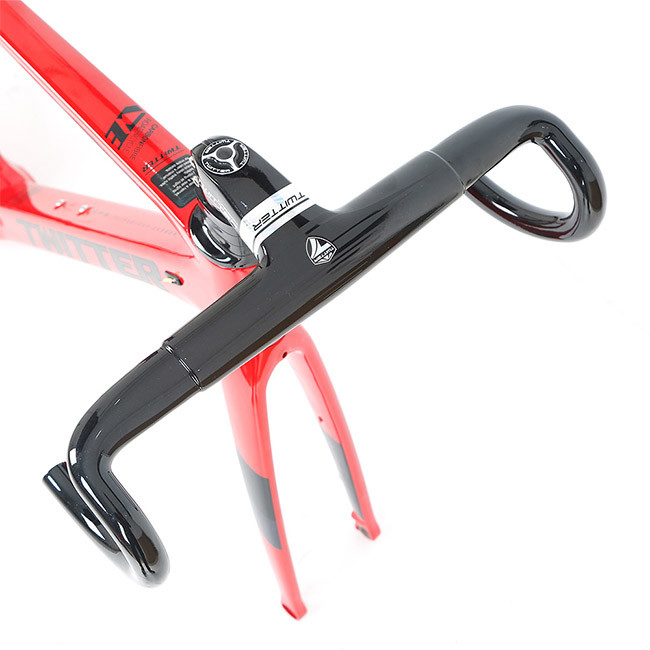

TWITTER STEALTHpro Carbon Fiber road bike frame, shows on detail
Road bike frame with EPS Technology
Size of the Frame
| STEALTHpro-D |
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | | mm | mm | mm | mm | mm | mm |
| XS - 45cm | 450 | 505 | 363 | 408 | 74.3 | 71.2 | 74 | 100 | 55 | 505 | 572 | 969 | 265 |
| S - 48cm | 480 | 520 | 373 | 408 | 74.3 | 71.2 | 75 | 114 | 55 | 519 | 588 | 985 | 265 |
| M - 51cm | 510 | 538 | 388 | 408 | 74.3 | 71.2 | 76 | 130 | 55 | 533 | 607 | 1004 | 265 |
| L - 54cm | 540 | 550 | 394 | 408 | 74.3 | 71.2 | 77 | 150 | 55 | 552 | 620 | 1017 | 265 |
| FRAME SIZE WITH RIDER HEIGHT |
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54CM | |
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |
Carbon road bike frame with UV laser colorful decals

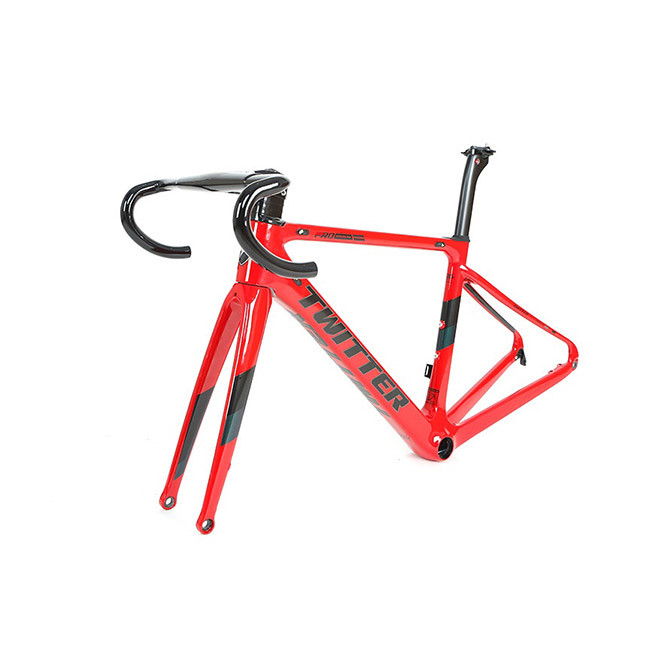

Different Viewing Angel for the STEALTHpro Road bike frame.

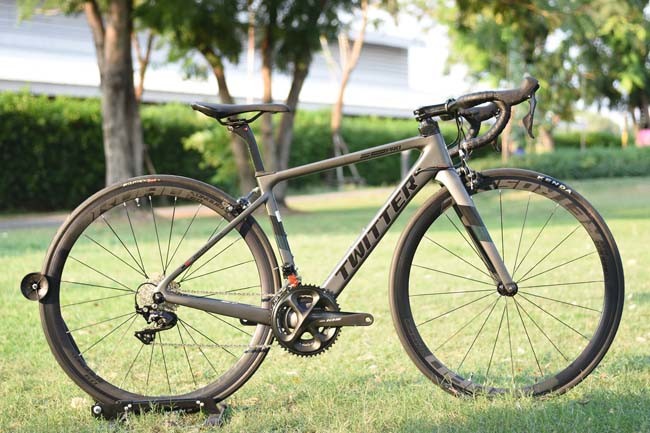

TWITTER Road Bike Stealth shows with complete bike
Pre-sales service
1. Customer request Or Customized specification is acceptable.
2. 100% test and inspection before packing.
3. Fully charged with any product before delivery.
4. Any inquiry about carbon frame or complete carbon road bike is welcomed. Prompt response.
5. Fast delivery and shipping status tracking.
After-Sales service
1.12 hours /day 6 days /week on-line service.
2. Professional technician and engineer service.
3. Free instructions of driving or riding.
4. Spare parts and components support.
5. Replacement or repair if it is under warranty.
Product Tags:
|
|

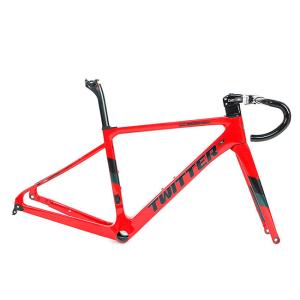

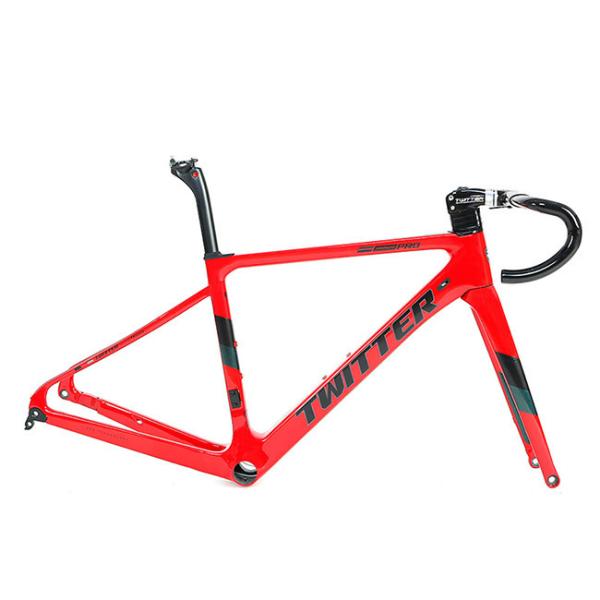

T900 Carbon Road Bike Frame Images
|
